Restoration of the Emmett 89-keyless Gavioli

12 Drums

The drums on this organ were in good condition, so I concentrated on their actions, of the normal Gavioli type. All leather parts were renewed, and all metal parts were cleaned of rust and protected by Hammerite.

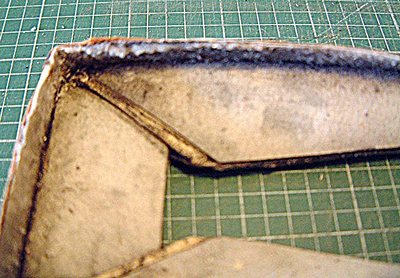

This is the bass drum leather as removed from the action. A very common mistake with these motors is the overlapping of the ribbing. At the overlap point there are two thicknesses of ribbing and four thicknesses of leather, resulting in a powerful squashing effect destined for a premature failure of the motor.

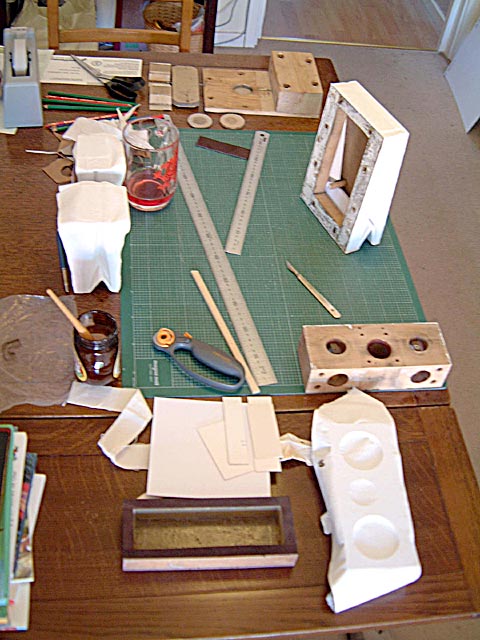

Here are a few pictures showing my work on the drum actions.

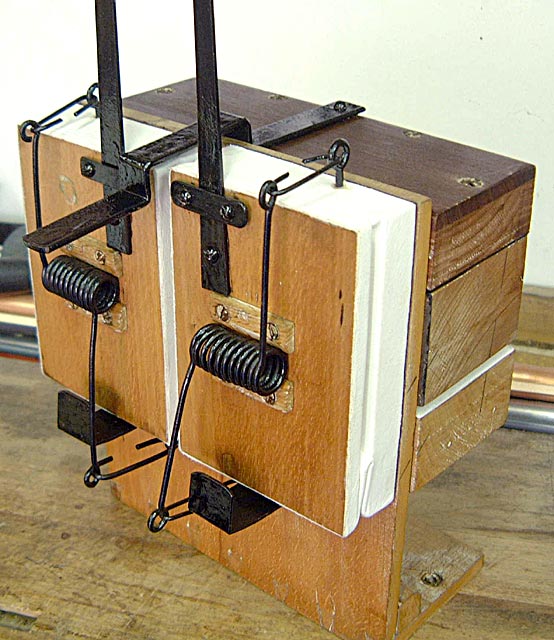

Above are shown the snare drum action before and after. Notice the wood beading round the motors has been eliminated. With proper leathering - with quirks - it is unnecessary.
